Cartridge Filter Media

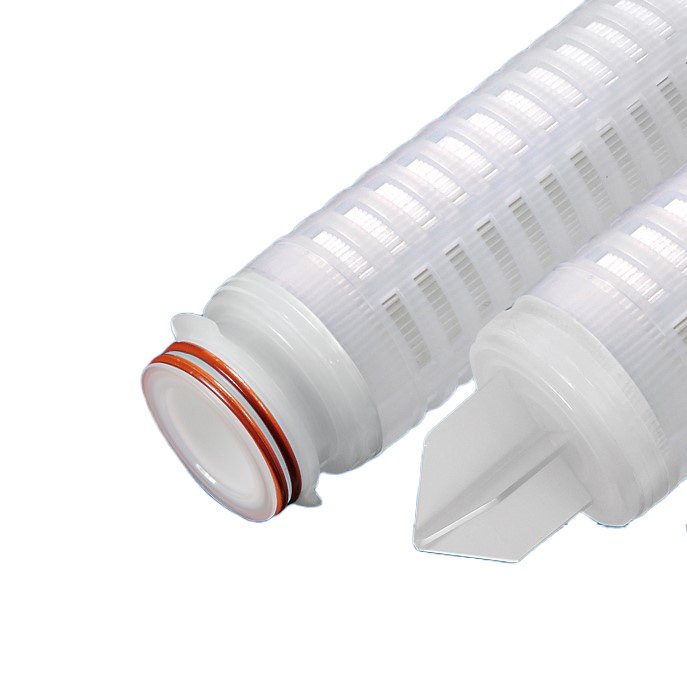

ZTEC WB series cartridges use a pleated TECpore polyethersulfone (PES) membrane for critical filtration in beverage applications. They provide consistent removal of spoilage organisms and inorganic particulate, with excellent retention and long on-stream life, for clarifying wine, beer and bottled water.
- 0.2, 0.45 and 0.65 µm ratings
- 9.75", 10", 20", 30" and 40" lengths
- Low adsorption of protein, color and flavor
- Steamable and sanitizable for reuse
- 100% flushed and integrity tested
- Made in an ISO Class 7 cleanroom
- FDA-listed materials, USP Class VI
- Choice of gasket and O-ring materials
| Outside / inside diameter | 2.7" / 1.0" |
|---|---|
| Surface area | 7.6 ft² per 10" element |
| Max. operating temperature | 176°F at 20 psid |
| Max. differential pressure | 80 psid at 70°F · 40 psid at 160°F |
| Recommended change-out | 35 psid |
Pad Filter Media
FILTROX FIBRAFIX depth filter sheets remove particles from liquids for clarifying, fine or sterile filtration. The liquid flows through a three-dimensional fiber network that holds solids by both mechanical and electrokinetic effects, for a high particle-holding capacity. Made from cleaned cellulose and natural filter aids.
- FIBRAFIX AF standard sheets for beverages
- FIBRAFIX TX-R to remove TCA and TBA from wine
- Formats from 6 cm round to 2.4 m × 1.2 m square
- Fits practically any sheet filter
- Sterilizable with hot water or steam
- Also available as lenticular modules
Lenticular Filter Modules for Your Lenticular Housing
FILTROX FIBRADISC AF modules put the same FIBRAFIX AF depth sheets into a stacked-lens cartridge that drops into the closed lenticular filter housing you already own. You get sheet-filter results with no dripping plate-and-frame to set up, and a module change takes minutes. Choose coarse grades for clarifying, fine grades for polishing, or sterile grades ahead of the bottling line.
- Standard module, Plus 2 back-flushable module, or HT for high temperatures (to 110 °C continuous)
- 12" and 16" sizes, with flat (DOE) or plug-in double O-ring (DOR) adapters to match your housing
- Silicone gaskets standard; EPDM, FKM and NBR available
- Sterilize with hot water or chemically; rinse with 50 L per m² before use
- FDA 21 CFR 177.2260, EU 10/2011 and USP Class VI compliant; kosher certified
| Module | 12" flat (DOE) | 12" plug-in (DOR) | K 12" | 16" |
|---|---|---|---|---|
| Lenses | 5 | 6 | 16 | 16 |
| Filtration area | 0.6 m² | 0.7 m² | 1.8 m² | 3.6 m² |
| Diameter | 290 mm | 290 mm | 290 mm | 400 mm |
Pick the Grade
| Grade | Retention (µm) | Use |
|---|---|---|
| AF 09, AF 11 | 10–30 | Coarse: rough clarifying |
| AF 17 | 8–20 | Coarse |
| AF 21 | 6–15 | Fine: clarifying |
| AF 31, AF 41 | 4–12 | Fine: polishing |
| AF 71 | 1.5–3 | Fine: brilliant polish |
| AF 101 | 0.5–1.5 | Fine: yeast reduction |
| AF 110 to AF 140 | 0.2–0.8 | Sterile: germ-reducing, LRV >5 to >8 (Serratia marcescens) |
Run up to 2.4 bar (35 psi) differential pressure, or 1.5 bar (21 psi) on sterile grades. Plus 2 modules can be back-flushed at up to 0.5 bar (7 psi). All the details are in the FIBRADISC AF technical data sheet.
Tell us the make and plate size of your sheet filter, the housing and cartridge length, or your lenticular housing and module size, and we'll match the media. Using a Waukesha for filtration? Great, just never with D.E.
