Processing: The Crush Pad

Carlsen & Associates crush equipment for every winery and every style. Every crush pad is different, so pick the machines that fit your fruit and your wine. We are the Central, Midwestern, Eastern and Northeastern sales and service agency for the whole line.

Receive
Receiving Hoppers & Incline Conveyors

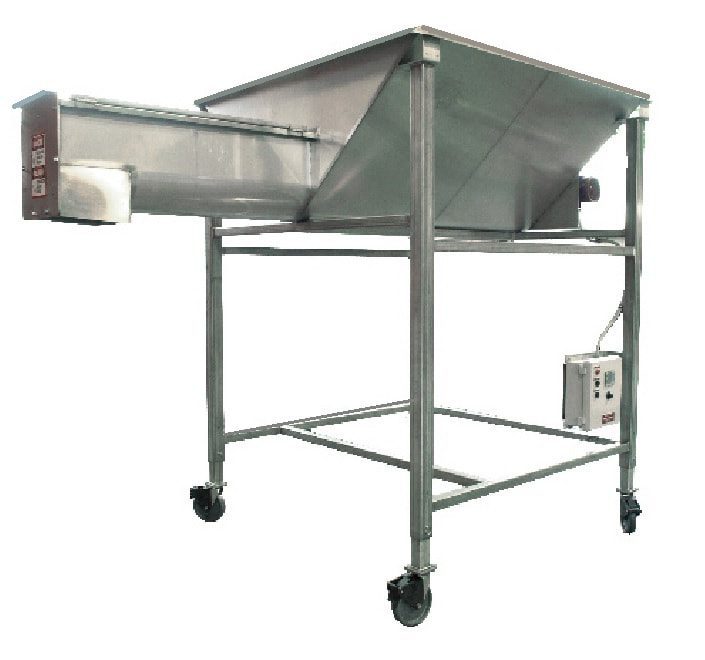

A constant, regulated flow of grapes into your destemmer gives you about 90% of the result of sorting. Choose the Carlsen 6' horizontal receiving hopper, which takes half-ton bins on the fly, or the American-made Carlsen incline belt conveyor, the last word in gentle mechanical movement of grapes. Or use both: the hopper to receive, and the incline belt to lift fruit from a sorting table or destemmer to the press or fermentor.

Hoppers & conveyors
Destem & Crush
Destemmer Crushers

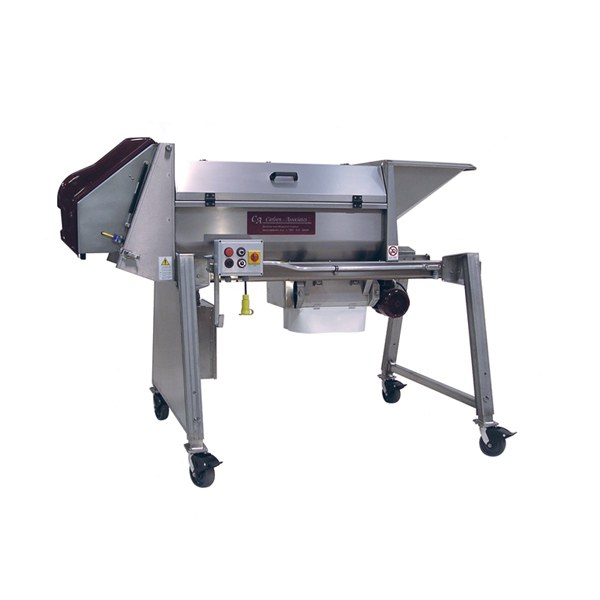

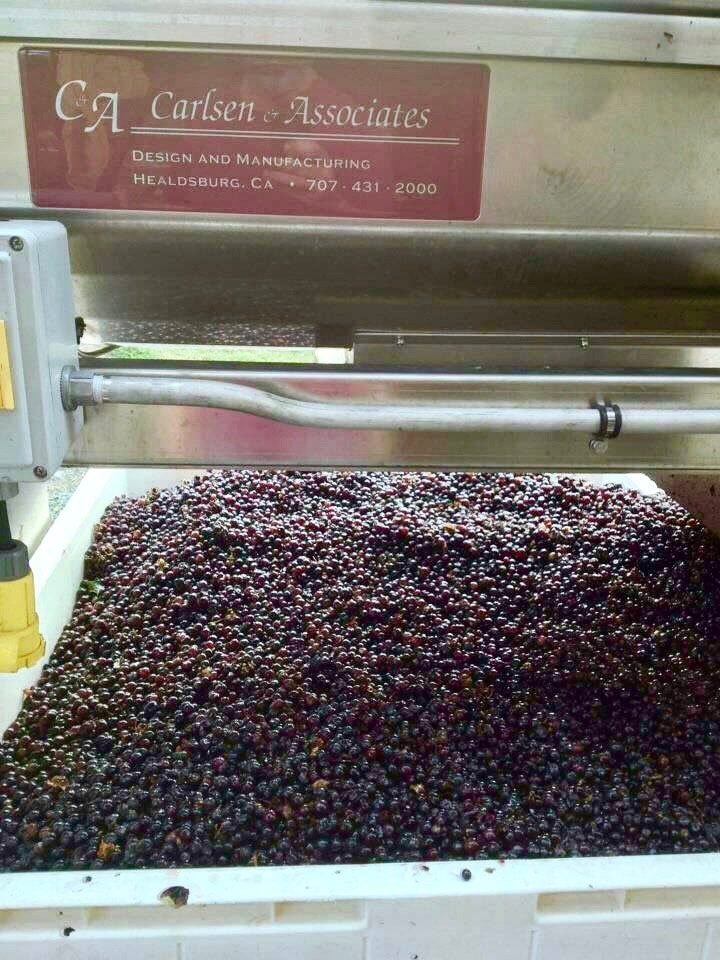

Puleo Vega series destemmers, rated from 1 to 80 tons per hour. Destem, crush, or both, with speed set by a frequency drive instead of a pulley and knob that wears out. The Vega R destems, crushes and sorts in one step. Crush rollers adjust or come out of service in seconds.

Destemmer crushers
Sort
Sorting Tables

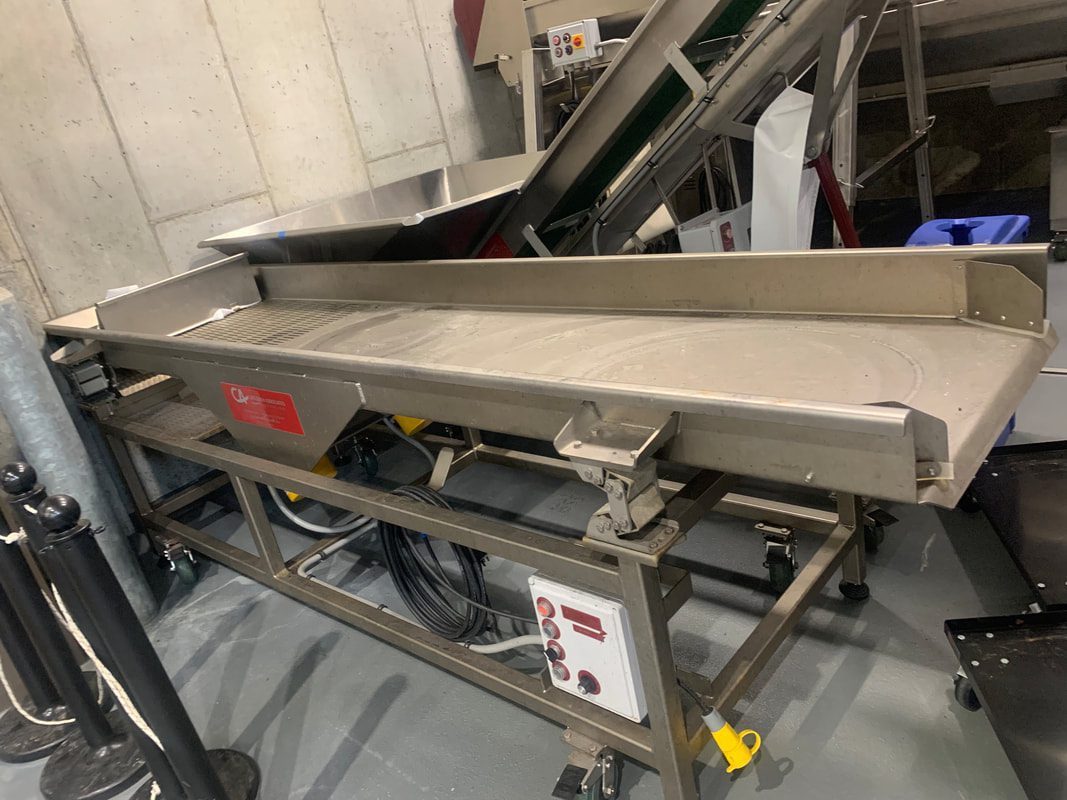

Carlsen vibratory sorting tables for whole-cluster, pre-destemming or post-destemming sorting. Mount crush rollers after the sorter and drop straight into bins, TranStore tanks, or a must pump to a large fermentor.

Sorting tables
Must Sump
Must Pumping Systems

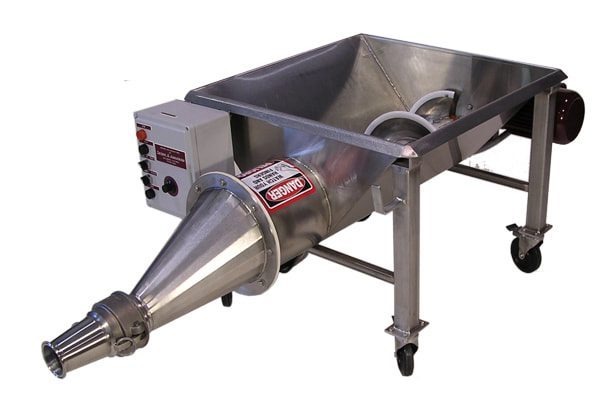

When you've outgrown destemming straight into bins, it's time to pump must. The American-made Carlsen must sump hooks directly to your Waukesha "Do-All" pump, the gentlest and strongest pump in the winery. The sump receives the must; the Waukesha does the pumping. No expensive one-trick pony sitting around all year.

Must pumping systems All pumps
Press
Presses

Puleo bladder presses from 9HL to 150HL, open or tank style, built to the Carlsen spec with parts available in the U.S. Or the American-made Carlsen basket press, which presses to 5 bar and turns loads around faster.

Presses
