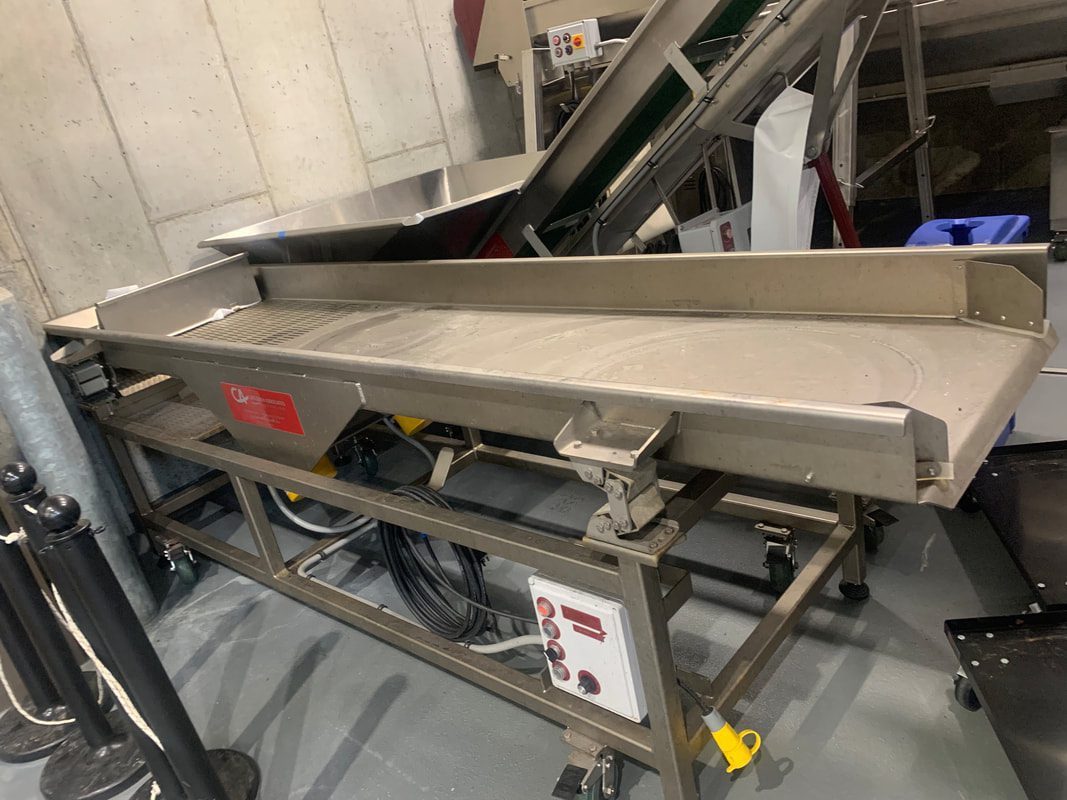

Carlsen Vibratory Sorting Tables
ENOTOOLS is your source for Carlsen's vibratory sorting tables. We have crush equipment options for overhead or incline receiving hoppers, and crush rollers mounted after the sorter for use with bins or TranStore tanks. The system can also be configured to receive, destem, sort, crush, then pump to a large fermentor.
Your happiness is our goal, and we provide the same quality and service on even one-off projects. We'll talk through your harvest technique, the size of your harvest, and how the grapes are handled, so we can tell you honestly whether other equipment belongs with your sorting table.
One Way to Sort: Receive, Destem, Sort, Crush
Your Carlsen receiving hopper supplies a metered feed of fruit to the Vega series destemmer (or whatever other brand you may be using), so you can choose the perfect rotation speed for the bunches. The destemmer's American-made stand adjusts to sit above the vibratory sorting table, which discharges into crush rollers that gently break the skins, or don't break them at all.
From there it can feed the gentlest must pumping system on the planet, or discharge into bins or satellite tanks for dumping into the fermentor.
Vibratory Sorting Table Specifications
| Model | 3.5-Meter Table | 4-Meter Table |
|---|---|---|
| Drop zones | Single drop zone | Double drop zone |
| Juice sump | Screened, one 1½" Tri-Clamp port | Screened, two 1½" Tri-Clamp ports |
| Process speed | 1 to 6 tons per hour | |
| Sorting bed width | 750 mm (about 29½") | |
| Discharge width | 596 mm (about 23½") | |
| Table height | 827 to 859 mm (about 32½" to 33¾") at the bed; 1,009 mm (about 39¾") overall | |
| Drive | Dual vibrating motors with variable frequency drive; single or three phase | |
| Construction | Stainless steel frame and table top; stainless steel isolators; swivel casters with brakes; leveling feet; control panel on the left | |
| Discharges to | Half-ton bins, a Carlsen incline conveyor, or a screw sump and pump system, before or after the destemmer | |
| Option | Rolling infeed hopper, 60" × 66" at the top; clears the vibratory table at 41" | |
